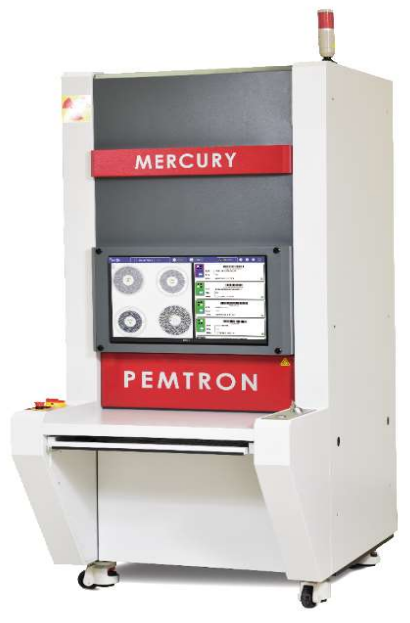

Automatic X-RAY SMD counter, model Mercury

back

Automatic X-RAY SMD counter, model Mercury

Manufacturer: Pemtron
Model: Mercury

Description

X-ray component counter with a counting time of 1 reel 7 "- 8 sec.

System features:

Automatic Counting & Components Recognition.
No Education Cost & No Teaching Process.
Updates Learning Data through Cloud.
Counts from Minimum 0402 Size Metric (01005 Chip) to
Large Components such as Connector.
Counts (4) 7” Reels at once (Capable of Quad Count).
Touch Screen Monitor.
Detector Space 430х430 mm.
Simple and User-friendly UI.
Auto and Manual Barcode Print.
Supports MES or ERP.

Gallery

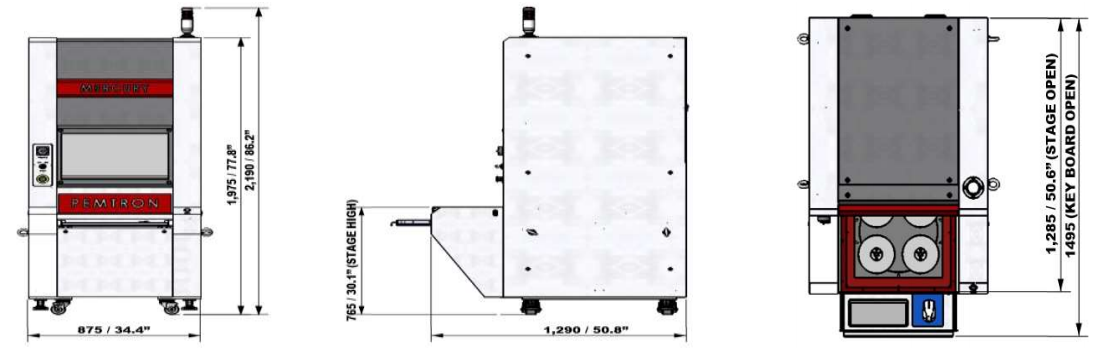

Equipment Size

Manual Barcode Print

Label Printer

Specification

Reel size:

Standard Reel up to 15”

Reel height:

120 mm

Reel weight:

10 kg

Minimum size of the components:

0402

Counting time 1 reel 7":

8 sec

Counting time simultaneously 4 reels 7":

12 sec

Accuracy:

>99%

Maximum voltage on the x-ray tube:

80 kV

Output power:

50 W

Detector:

17"х17" FPD

OS:

Windows 10

Equipment Size(LхWхH):

875х1290х2190 mm

Power:

220V , Single Phase, 50/60 Hz

Base complectation

SMD counter Mercury.
Touch Screen Monitor.
Manual Barcode Print.
Graphics card.
Label Printer.
